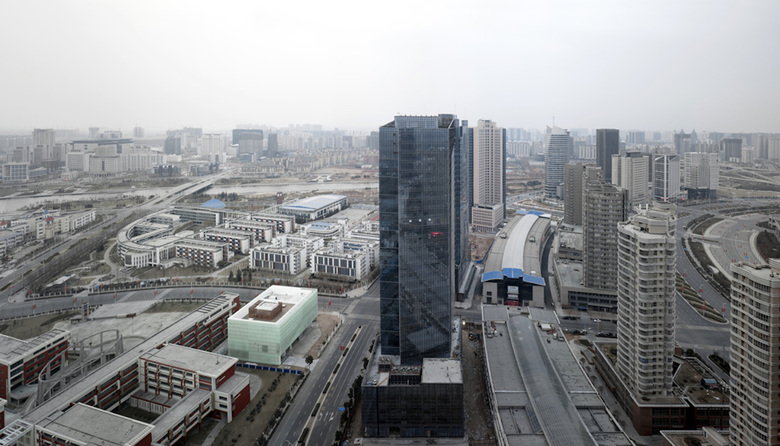

context
© Yao Li

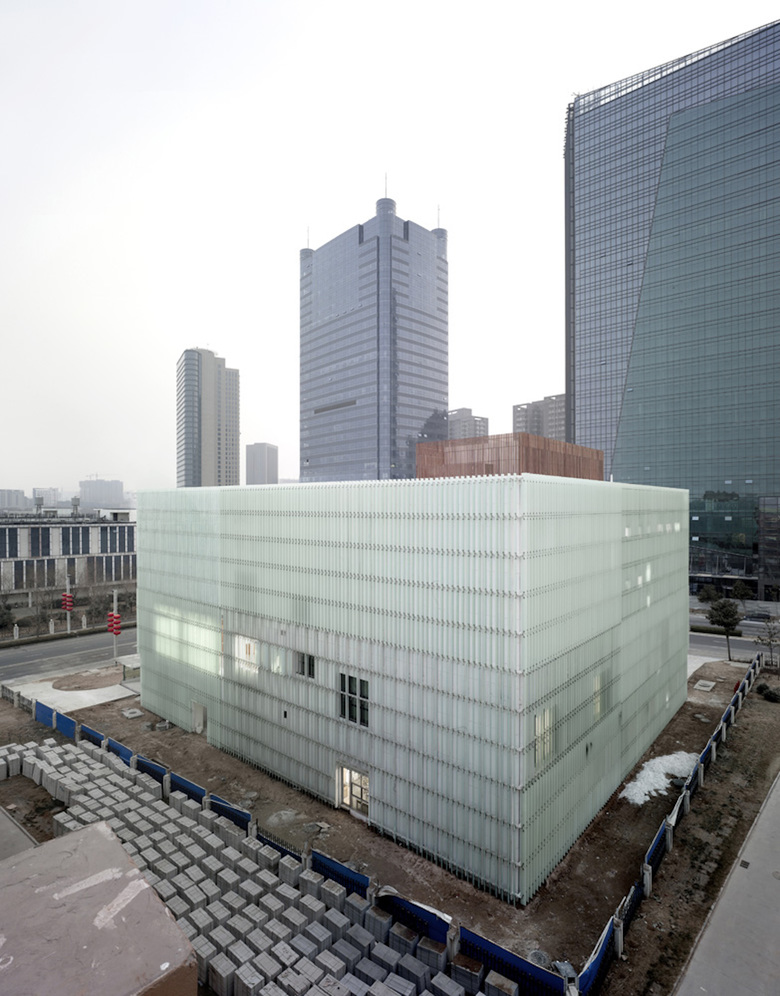

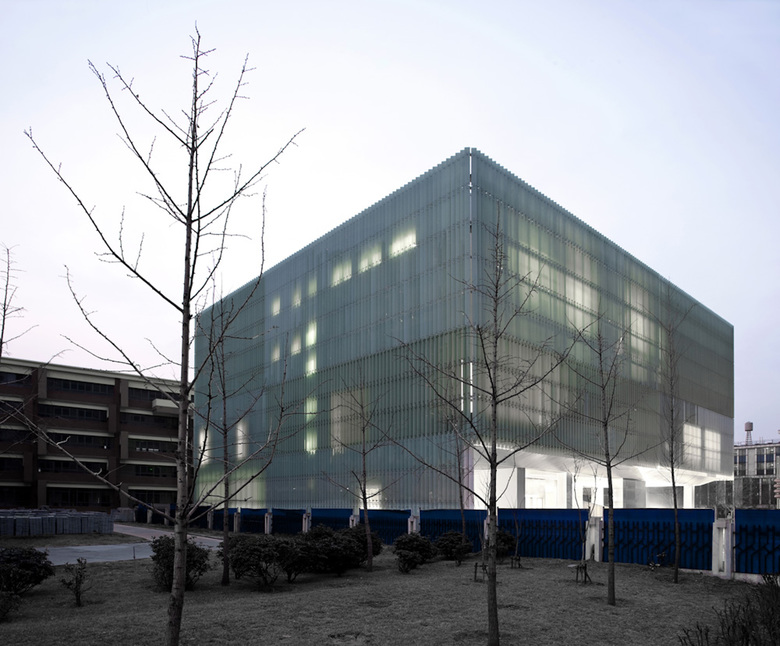

northeast
© Yao Li

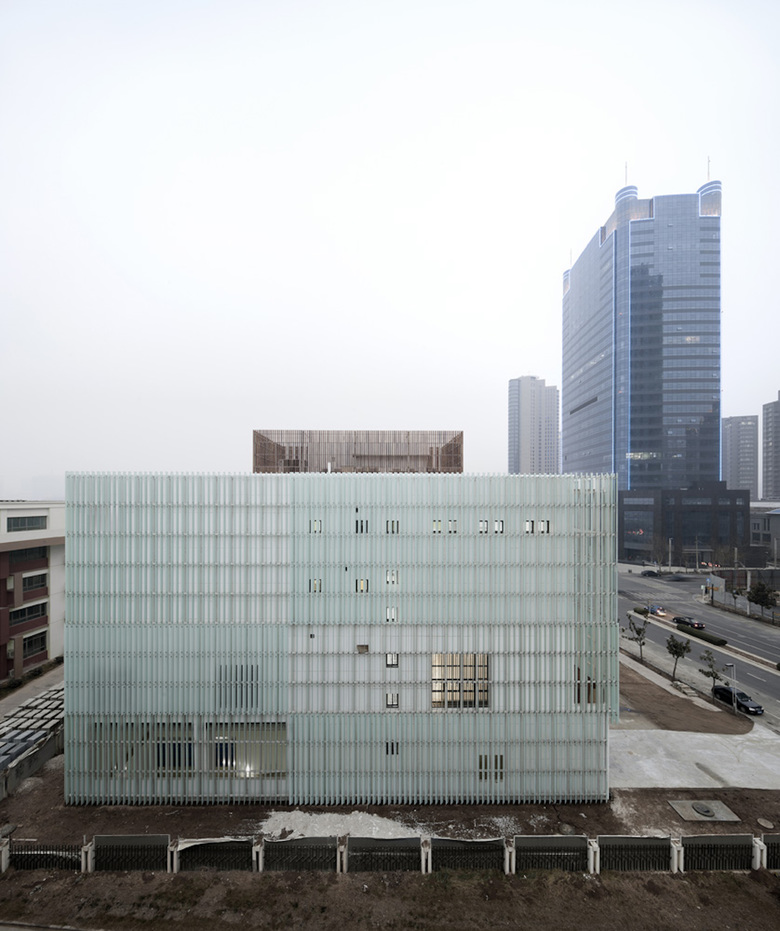

north
© Yao Li
northwest nightview
© Yao Li

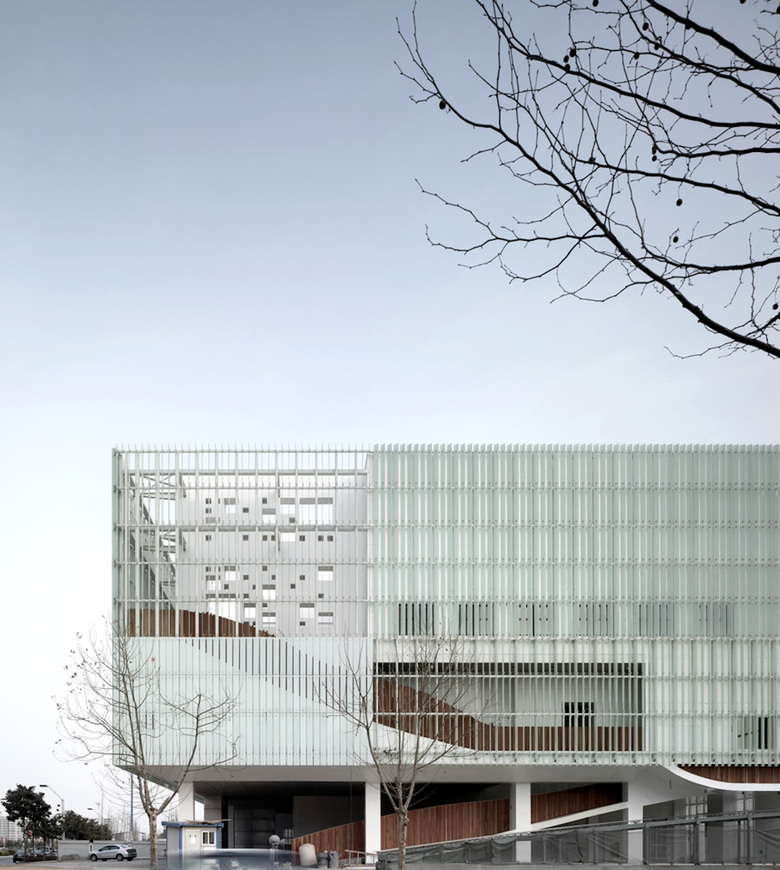

south
© Yao Li

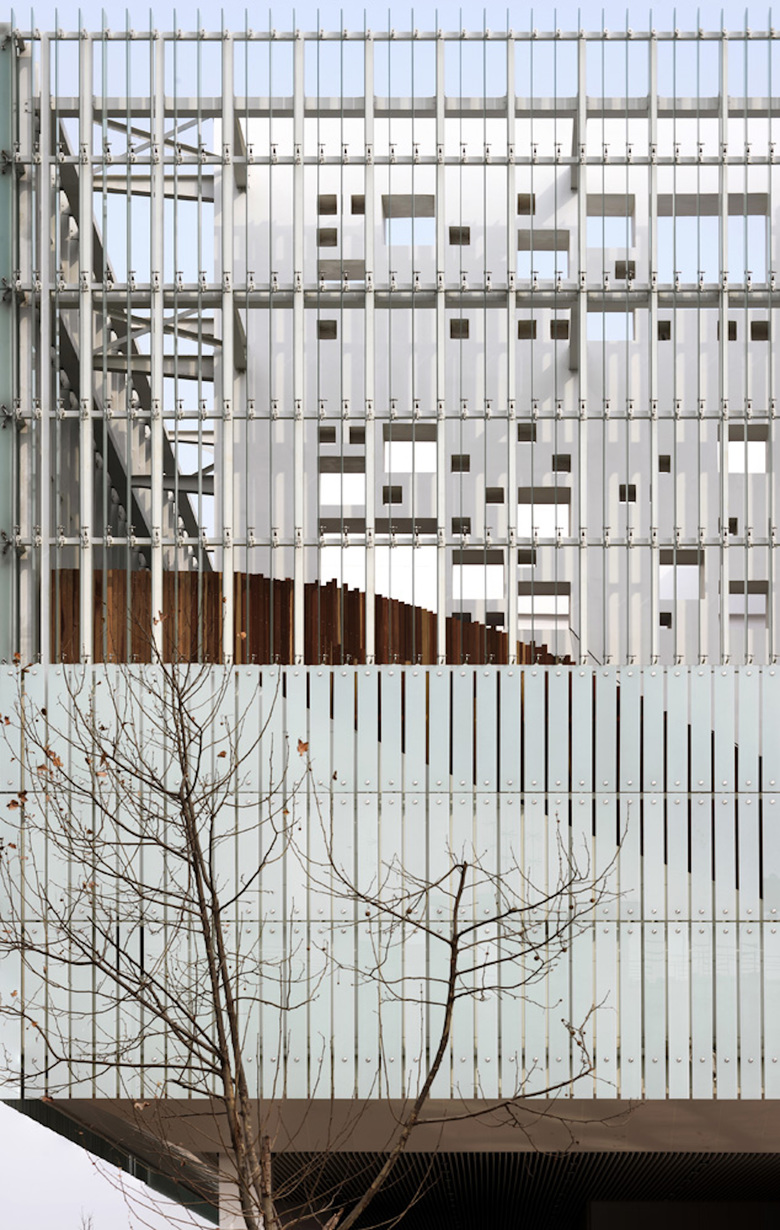

south detail
© Yao Li

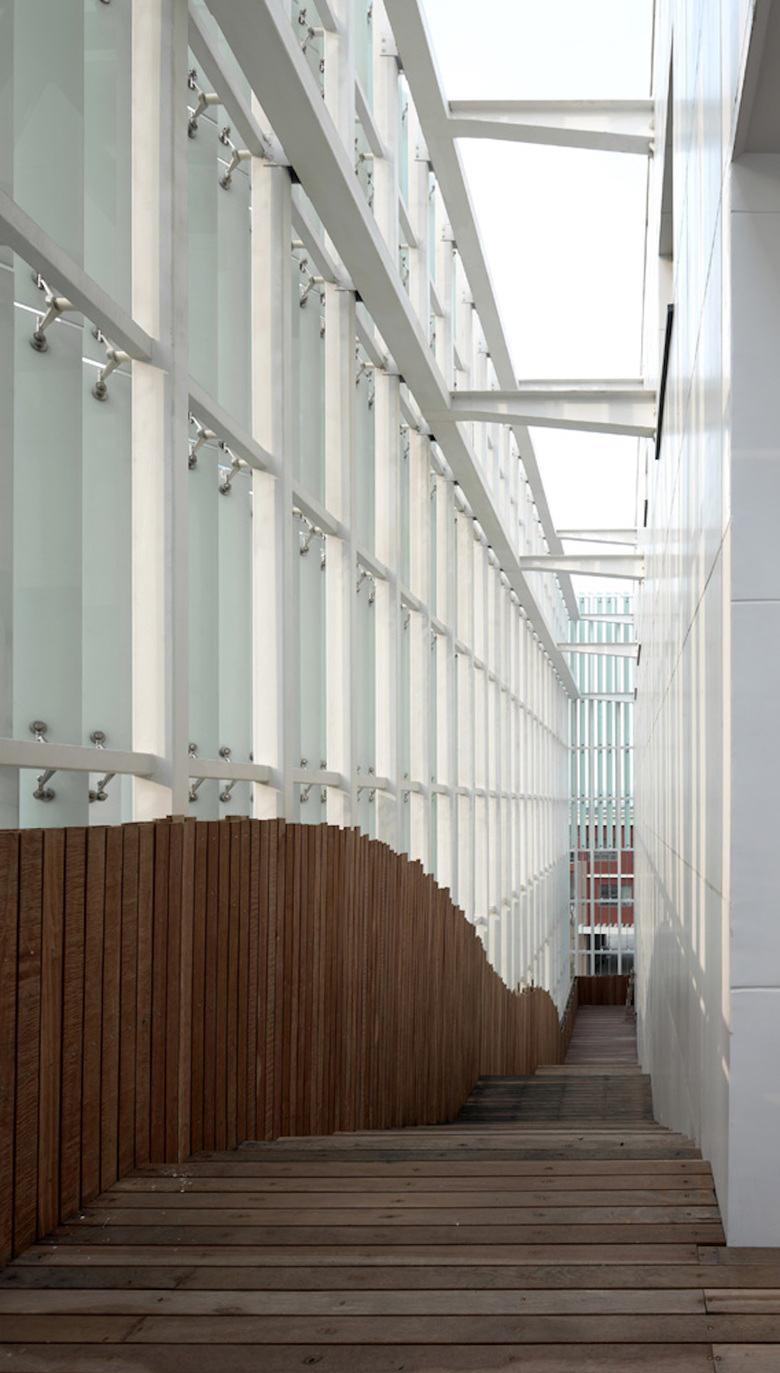

public circulation
© Yao Li

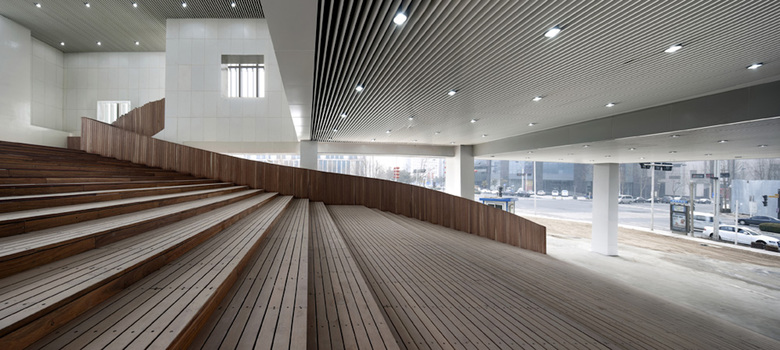

entrance steps
© Yao Li

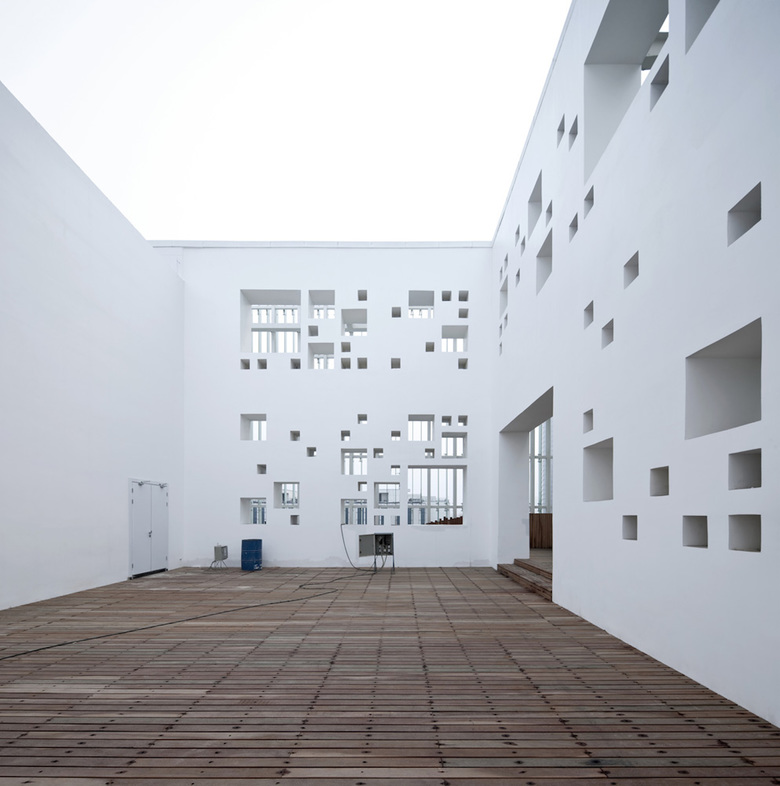

roof courtyard
© Yao Li

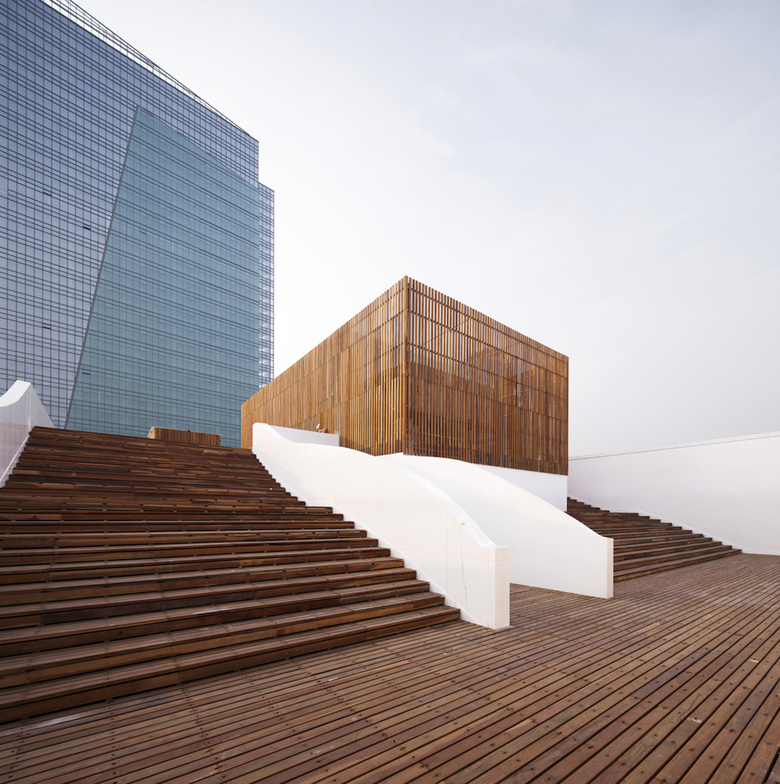

roof terrace
© Yao Li

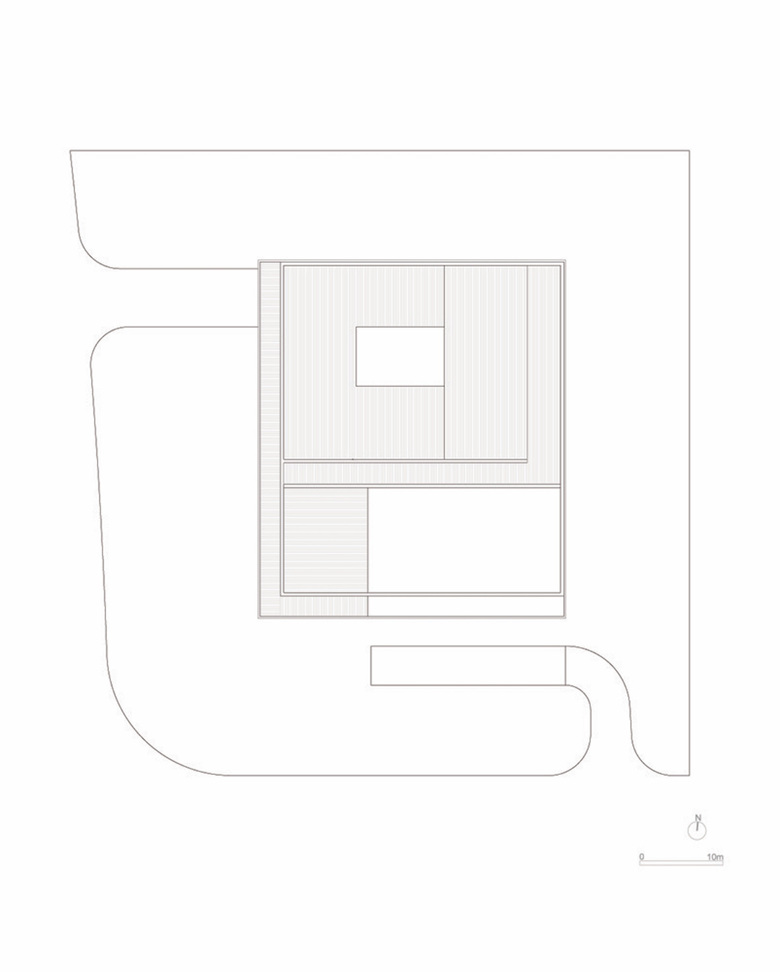

site plan
© AZL

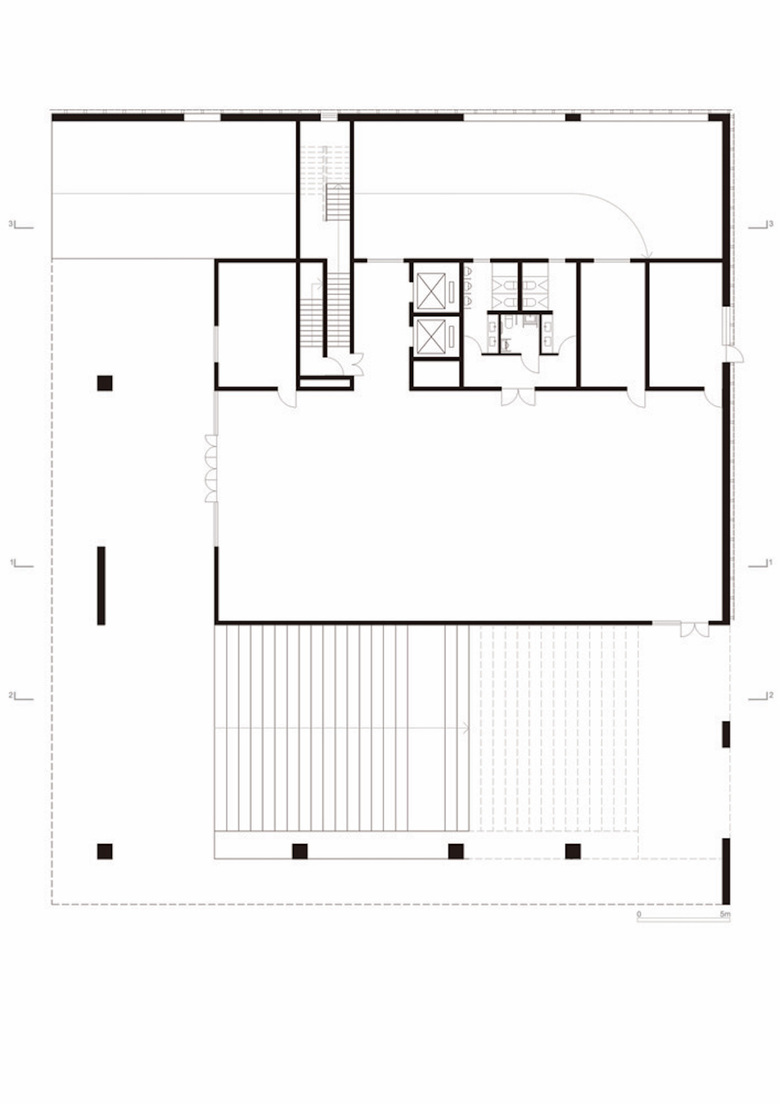

ground floor
© AZL
first floor
© AZL
second floor
© AZL
third floor
© AZL

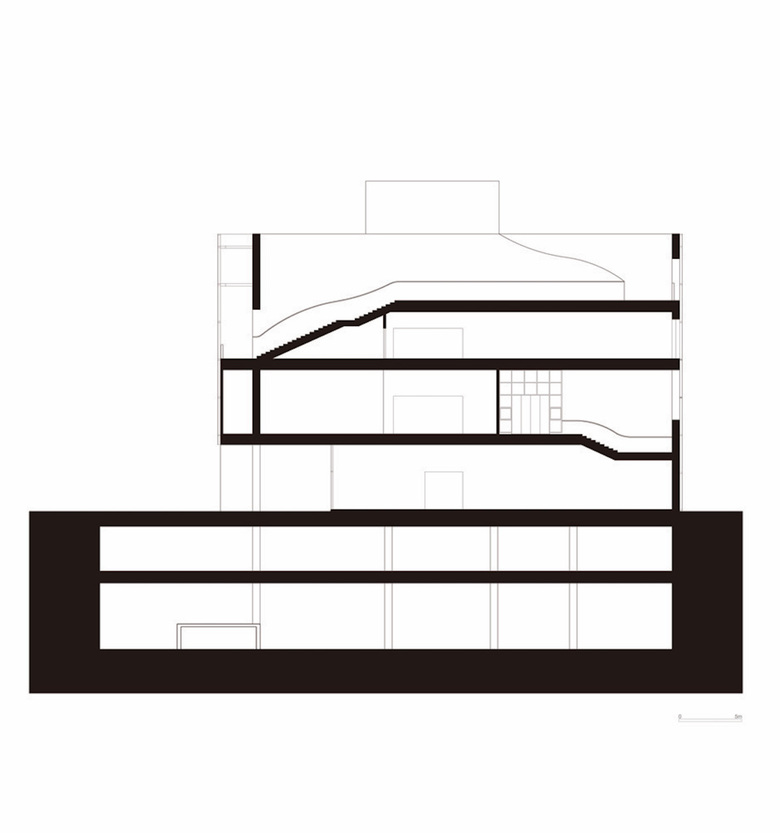

section 1-1
© AZL

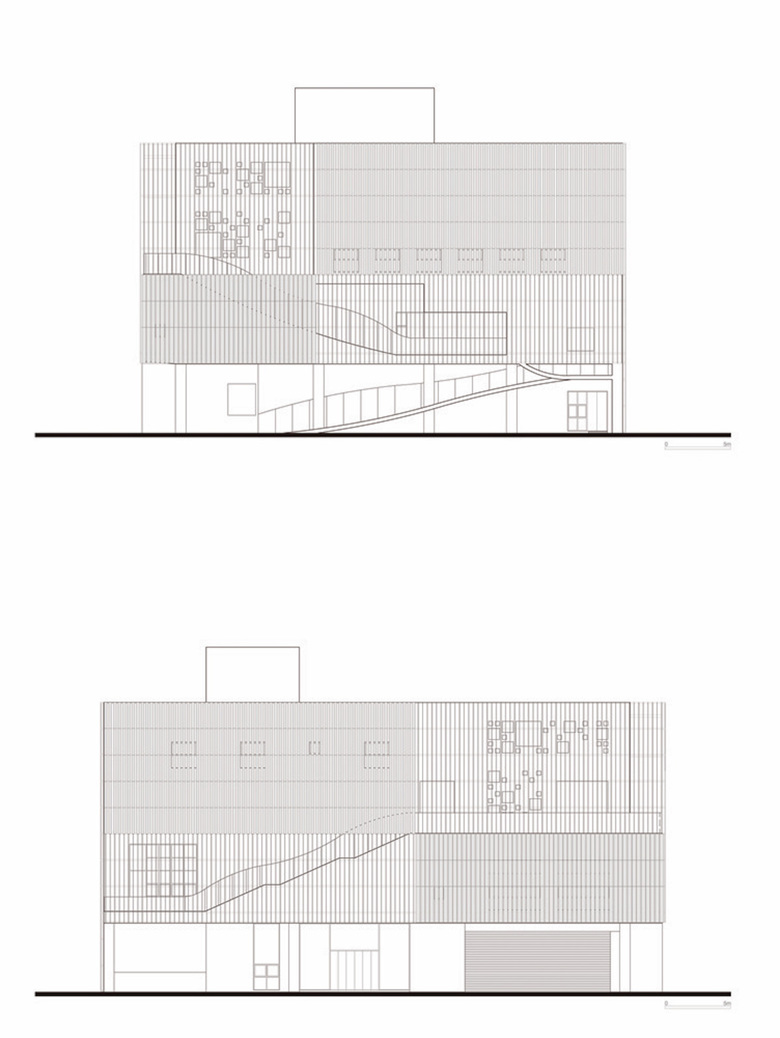

east+north facade
© AZL
south+west facade
© AZL

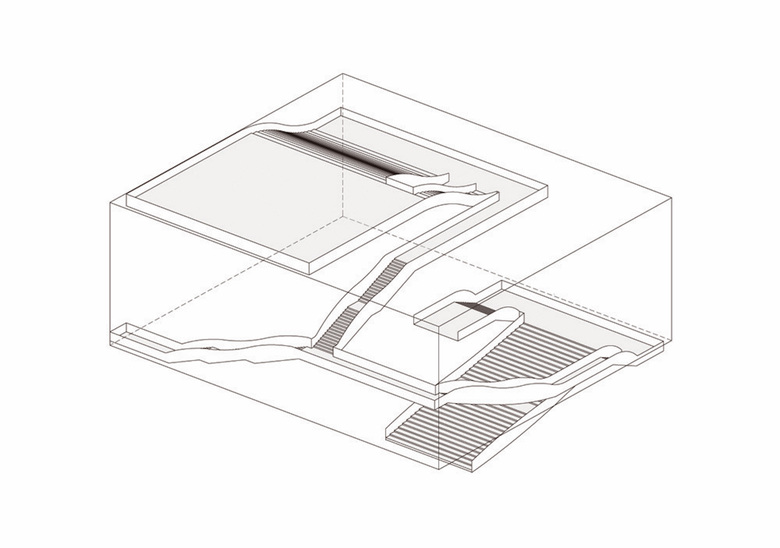

circulation
© AZL

Zhengdong District Urban Planning Exhibition Hall

 Terug naar projectenlijst
Locatie
Zhengzhou, China
Jaar
2011
Team
Zhang Lei, Qi Wei, Guo Donghai, Cai Zhenghua
Construction drawing design
ADI-NJU

Public places embodying shared cultural values and ideals have the opportunity to become the most important activity and urban life centres in cities. Contrary to the iconic architecture and closed façades ubiquitous in China, public buildings need to present an openness and give back to the urban context, especially in the case of the Urban Planning Exhibition Hall.

Unlike other symbolic public buildings usually located in city centres, the Zhengdong Exhibition Hall is in the southwest of street cross, adjacent to a school to the north and east. The site is quite compact, with a total floor area of the project of 8450 square metres.

The south and east façades of the building are open at ground level. A large ramp creates the main entrance, which directs public circulation vertically through several entrance spaces and multilevel courtyards, and eventually to the roof terrace. The privacy of the internal exhibition galleries contrast with the transparency of the public corridors, as they are positively intertwined. External surfaces are clad in 300mm glass louvres splayed at angles of 0, 45, and 90 degrees based on programmatical requirements. The angles provide for constantly changing sight lines, degrees of transparency and refraction, the creation of motion. The effect is a pure cubic volume.
